bolt seal typically consists of a solid bolt body with a bolt head affixed at one end and a slidable sleeve surrounding it. The sleeve is held in abutting contact with the bolt head at one end and a shoulder comprising an enlarged diameter portion of the solid bolt body at the other end. This design allows the bolt head to be pressed snugly against a seal housing, thereby eliminating the possibility of tampering with the seal.Bolt seals can be used in a wide range of applications, including shipping containers, cargo trucks, and other types of secure transportation. They can be customized to fit different sizes and shapes of containers or items, providing a versatile solution for securing various types of cargo.
| Application | Container (sea, air, inland transport), Ttruck, Drums |
| Printing | Company name and logo, barcode serial number, laser or hot stamp, laser print barcode seal |
| Colors | Yellow, blue, white, green and other customer specified colors |
| Specification | Pin: length 78mm, diameter 8.0mm angle: length 34.5mm, diameter 20.5mm |
| Advantage | Comply with the 2013 ISO / PAS17712 quality certification; can import and export goods safely; Protect printed LOGO, numbers or barcodes; even if the plastic cover is broken, the seal will continue to function safely. |
| Materials | ABS carbon steel plastic carbon steel |
| Pulling force | 1500 KGS |
Product Detail
Other Popular Style
OEM Detail

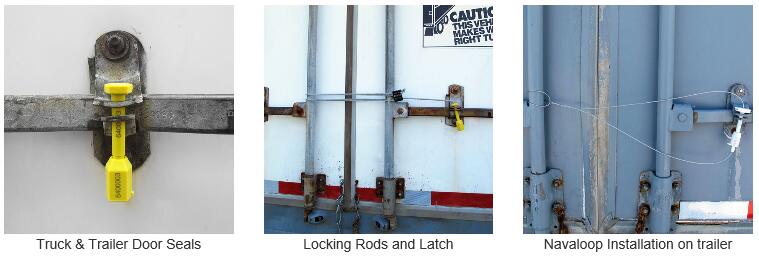

Application
Packing
