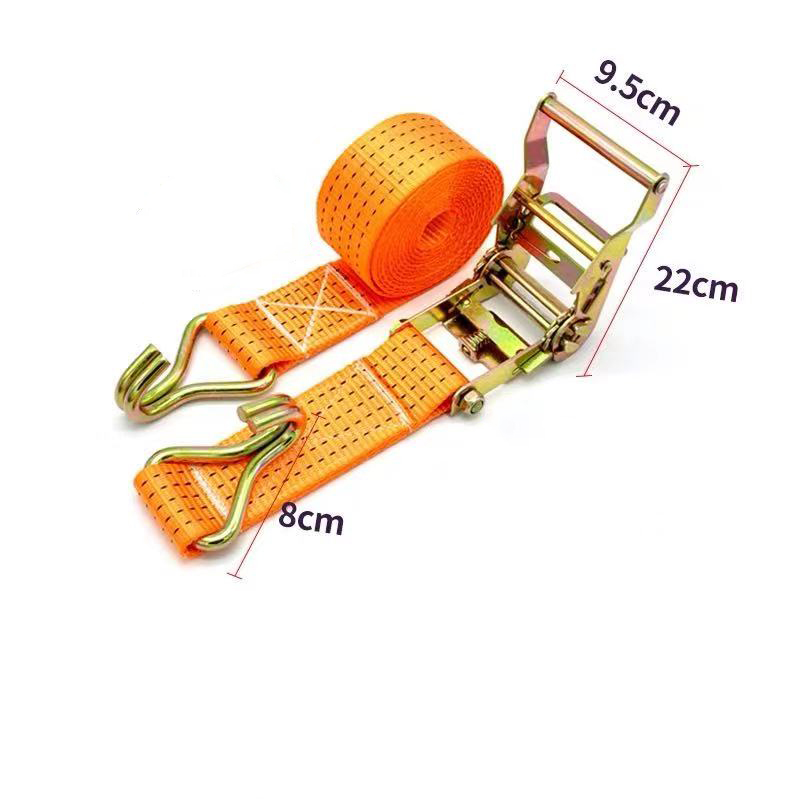

Heavy Duty Ratchet Strap – 5000kg Industrial Tie Down Strap

Short Description:

JahooPak Ratchet Tie Down Advantage:

1. Safer and firmer

2.It can reduce the inventory of fasteners of different specifications and other fasteners

3.Super high temperature resistance, acid resistance and corrosion resistance

4.Reduce daily workload

5.Better long-term economic benefits


Product Detail

Product Tags

Ratchet Straps are one of the most reliable tie down methods in the cargo control industry, From light-duty securement work that needs versatility to heavy-duty tie down jobs that require industrial strength, these Ratchet Straps are engineered with the trucker in mind with a flawless combination of strong webbing and durable hardware to help get the job done right. Professional truckers will benefit from the heavy-duty high-quality of our Straps while enjoying how our Straps make a tie down job a quick, easy, and effortless process. Our Ratchet Straps are also engineered with enhanced durability so that they can keep a strong, tight grip over the load with maximum wear resistance, helping to make the securement and transport job easier. No matter the size or shape of the load, our Ratchet Straps have the flexibility to easily wrap and secure all types of different cargo.

WIDTH LENGTH COLOR MBS JOINT STRENGTH

(75% MBS WITH HDB12)

SYSTEM BREAKING STRENGTH (SBS) MAXIUM SECURING LOAD (MSL) CERTIFICATION
32 mm 250 m WHITE 4200 LBS 3150 LBS 4000 daN

9000 LBF

2000 daN

4500 LBF

AAR L5
32 mm 230 m WHITE 3285 LBS 2464 LBS / / AAR L4
40 mm 200 m WHITE 7700 LBS 5775 LBS 6000 daN

6750 LBF

3000 daN

6750 LBF

AAR L6
40 mm 200 m ORANGE 11000 LBS 8250 LBS 4250 daN

9550 LBF

4250 daN

9550 LBF

AAR L7

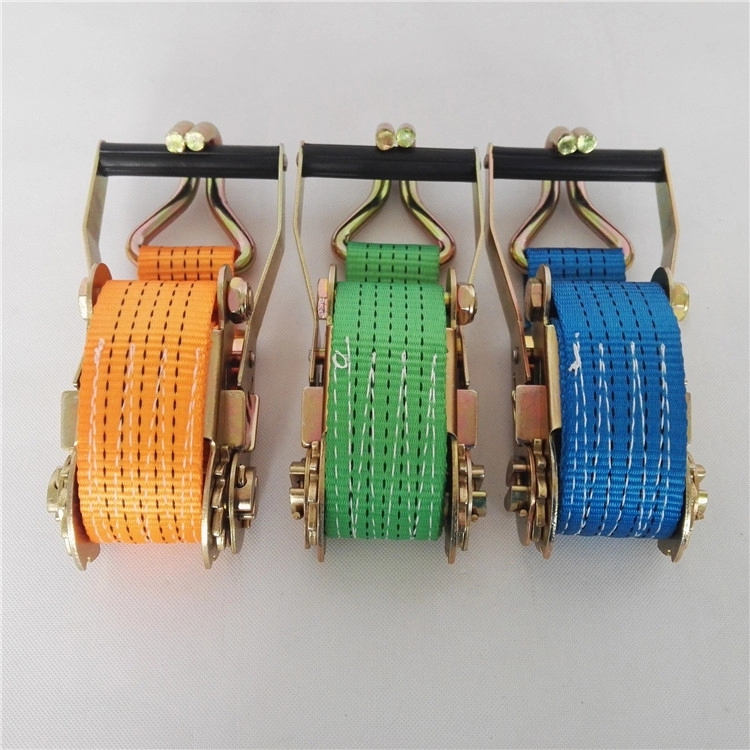

   Product Detail

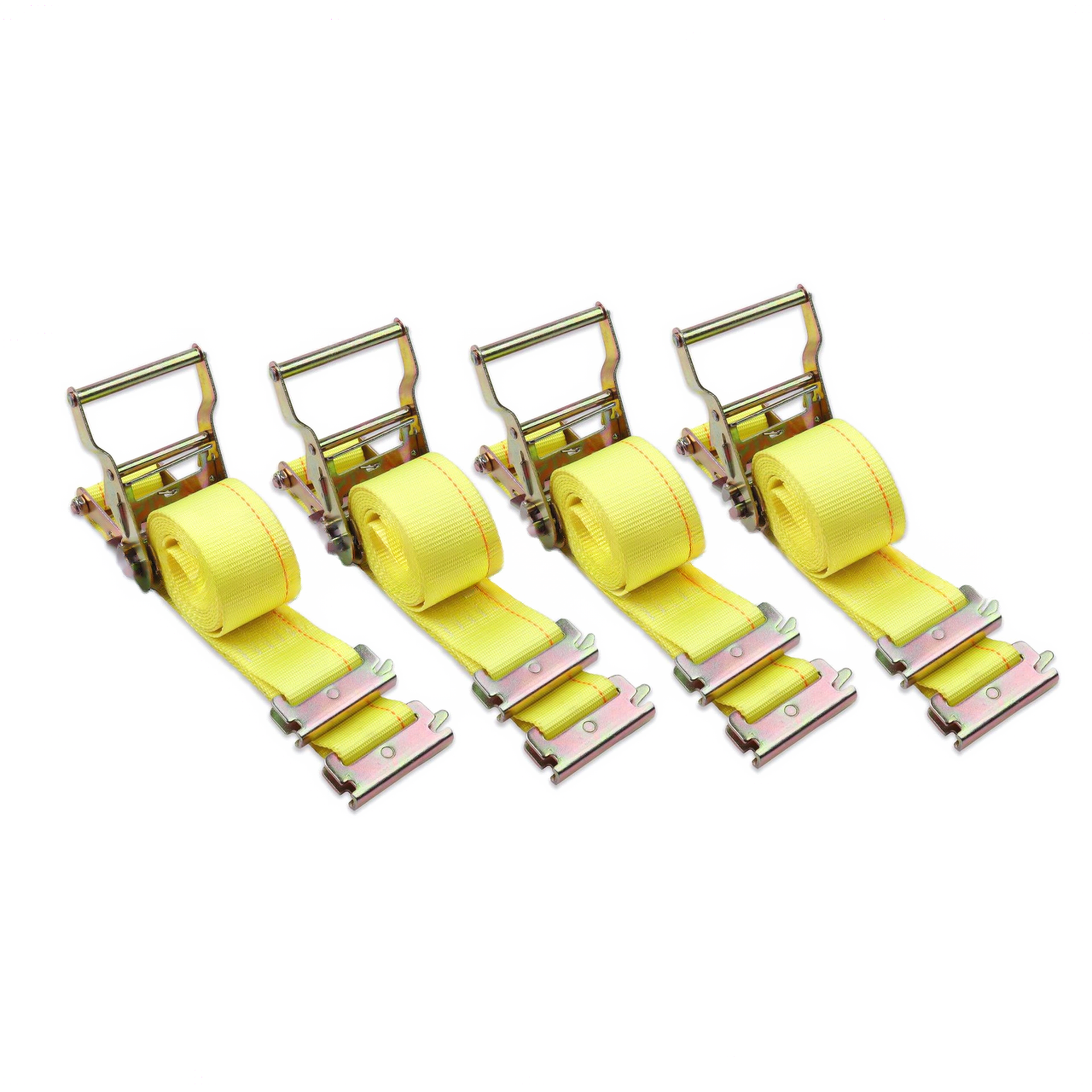

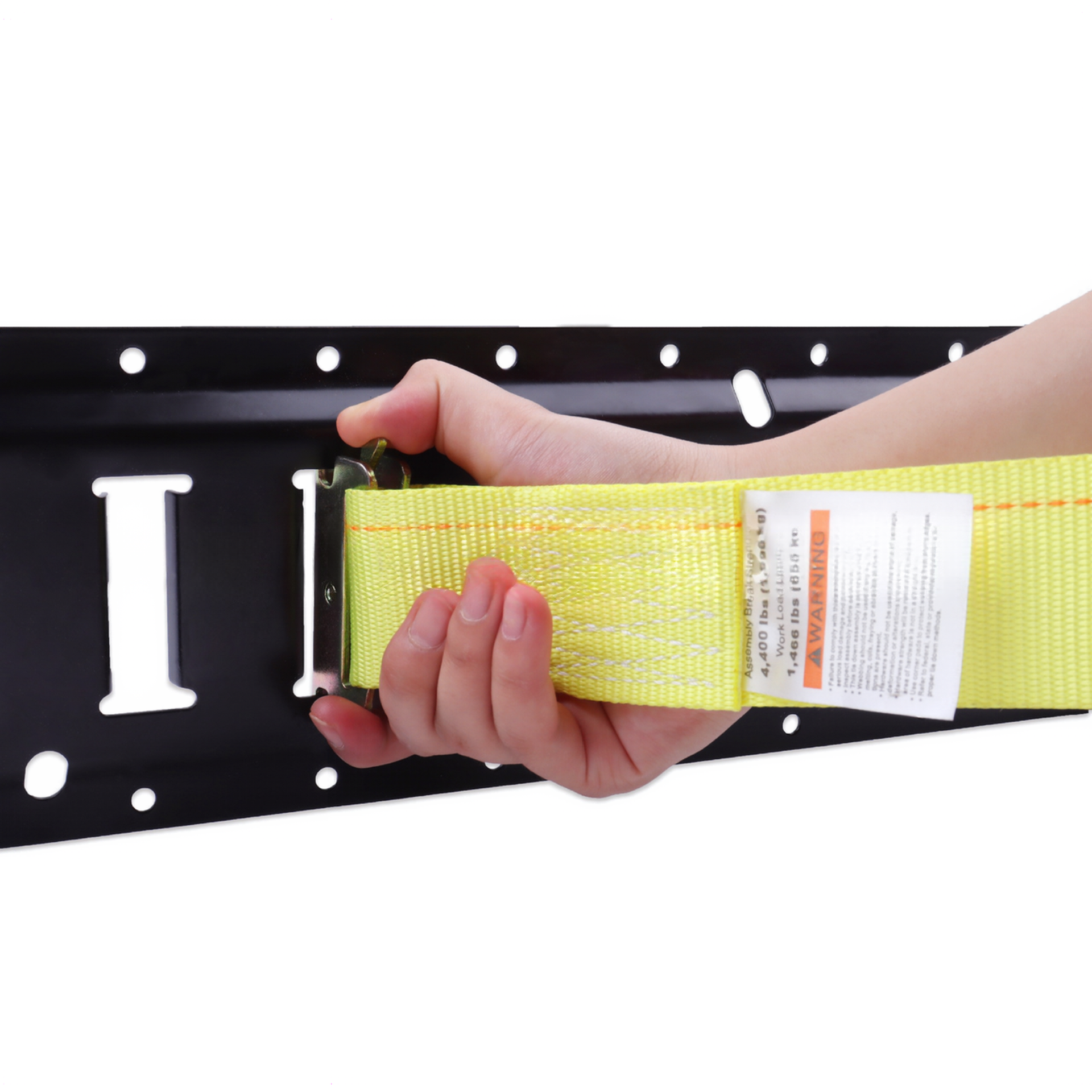

20241101_091404_000 20241101_091404_003

Ratchet Tie Down 120200610_174448_013

How to Use Ratchet Straps – 9 Easy Steps

Time needed: 10 minutes

1.Steps to follow while using the ratchet steps.

2.Use Release Catch to Open Ratchets

 3.Close and Flip the RatchetThread the Strap Through Open Slot

4. Secure the End-Fittings

5.Pull the Free End of The Strap

6.Tighten The Ratchet

7.Close and Lock Ratchet Handle

8.Pull and Hold The Release Handle
9.After Usage; Inspect, Wrap, Store

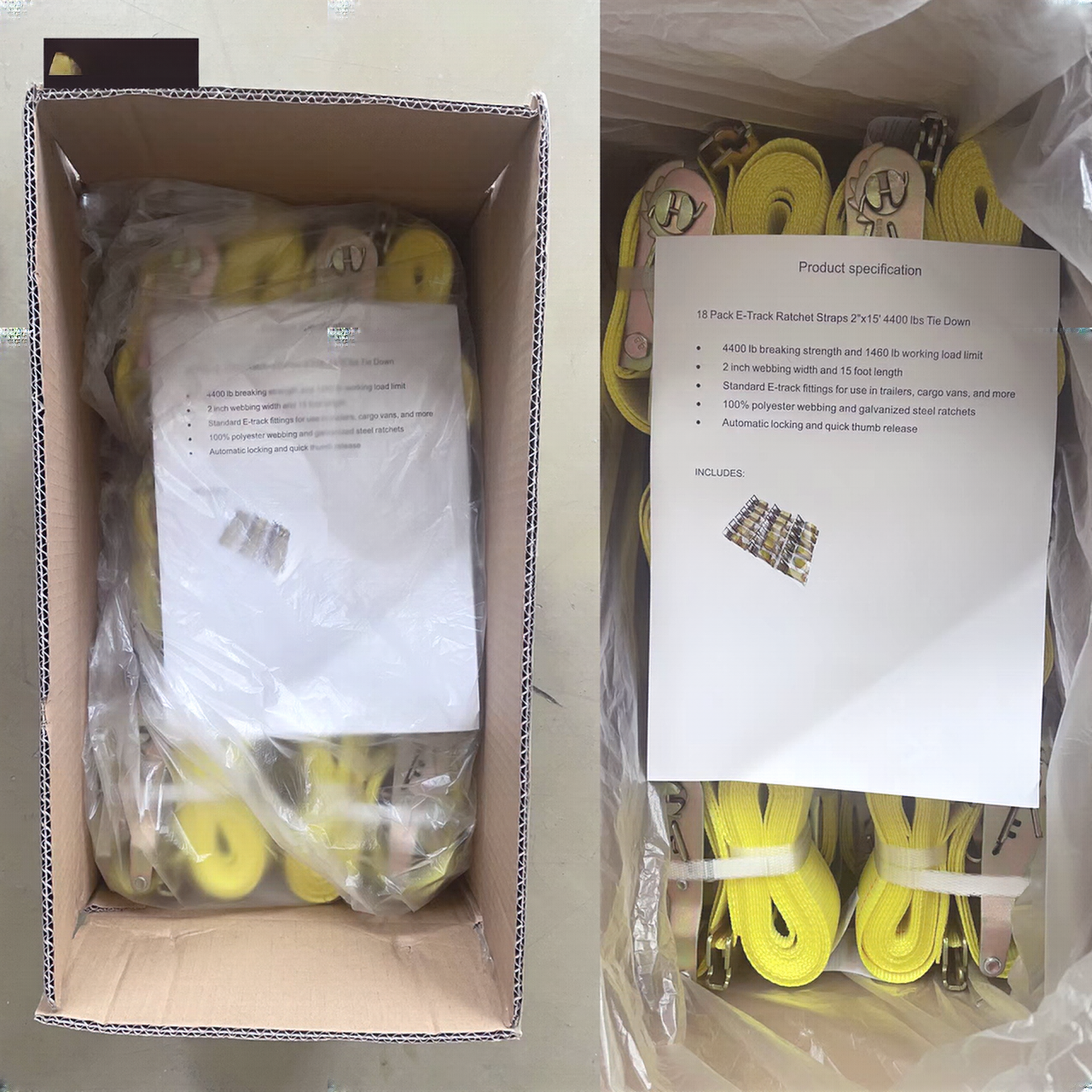

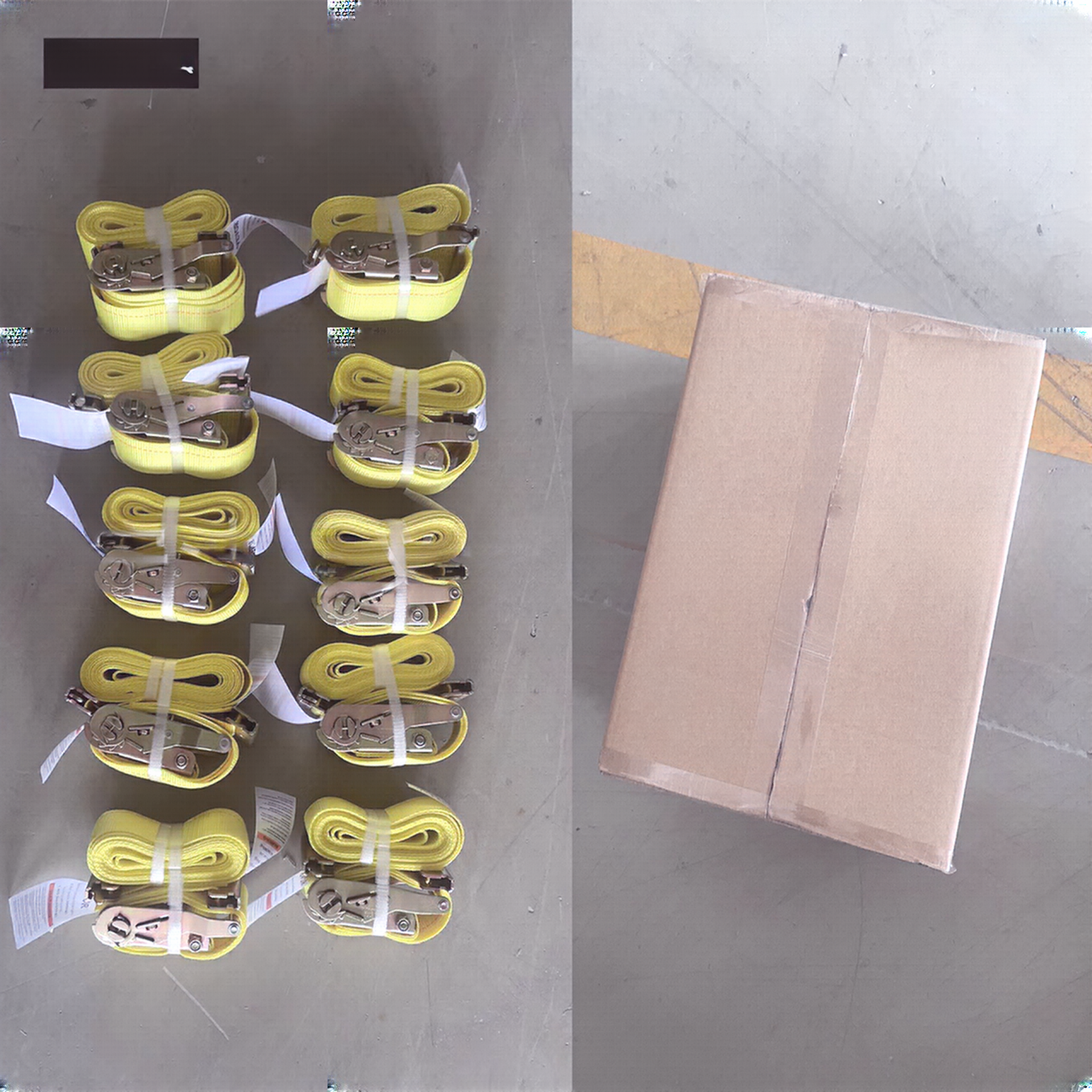

    Packing
20241101_091434_01120241101_091434_012

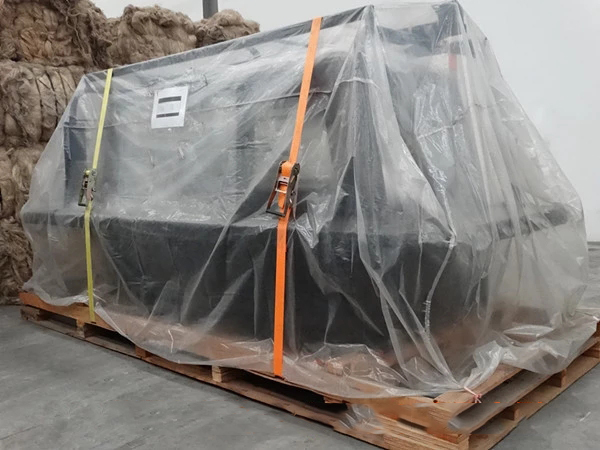

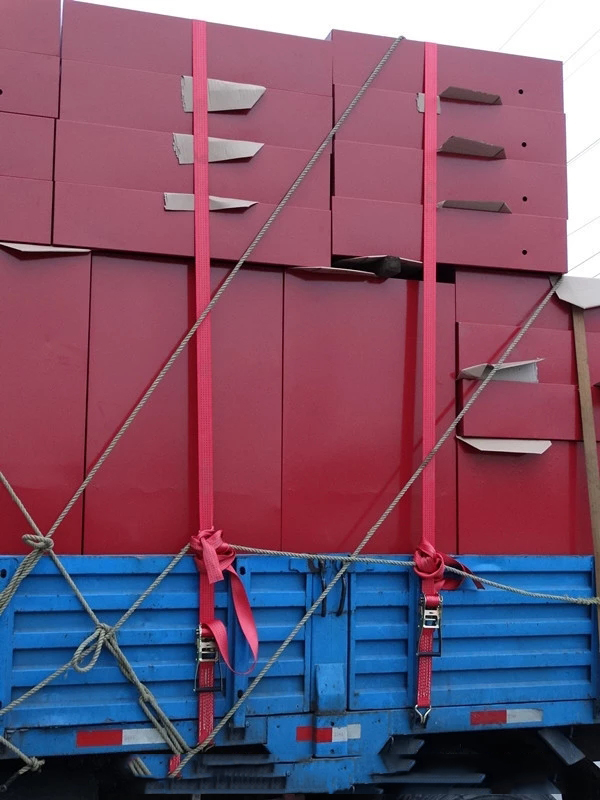

   Application
20200610_174448_010 20200610_174448_011
