Inflatable dunnage bags prevent lateral and longitudinal movements during transport

Short Description:

Why use inflatable dunnage bags?

It is the fastest system for lashing goods.
It is a very easy application system.
The merchandise arrives at its destination without damage or claims.
They are suitable for trucks, trains, ships, containers, etc.
Different measures adaptable to all types of goods.
Different qualities of resistance (Up to 40 Tn.)
Available in different materials: Raffia and paper.
It is a very economical system thanks to its low cost.

Product Detail

Product Tags

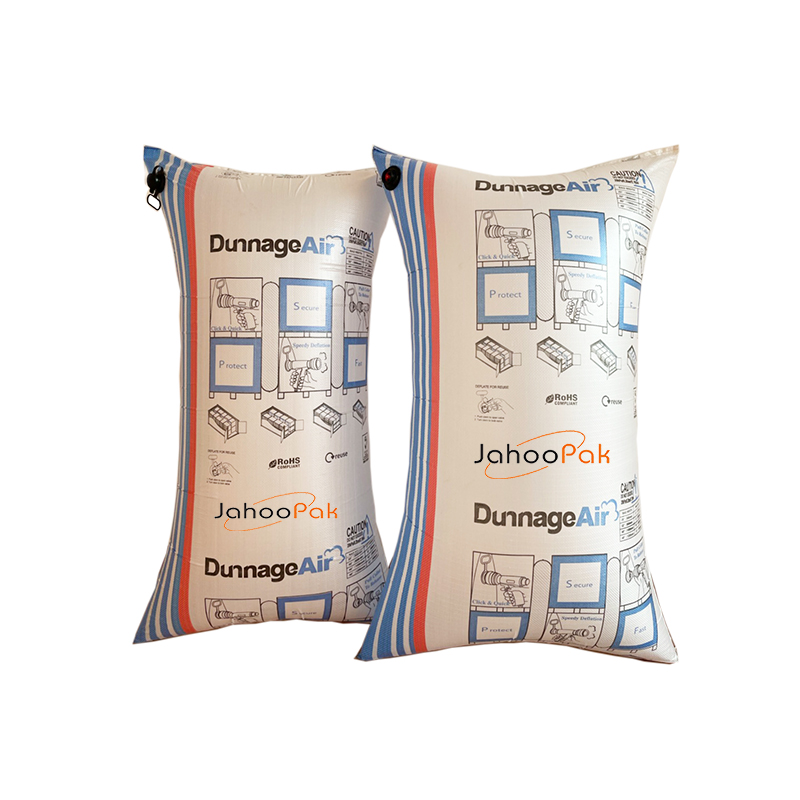

Stabilize your shipment with pp -woven airbags. These products are perfect for filling any gaps between your pallets, barrels, crates, and other cargo. Simply place and inflate to prevent unwanted movement and/or damage. They also provide shock absorption for extra security. Constructed with a two-way locking valve, it’s quick and easy to inflate and deflate these air bags. The typical fill time is less than 30 seconds! They can be used in road trucks, intermodal rail cars, boxcar rail cars, and overseas containers.

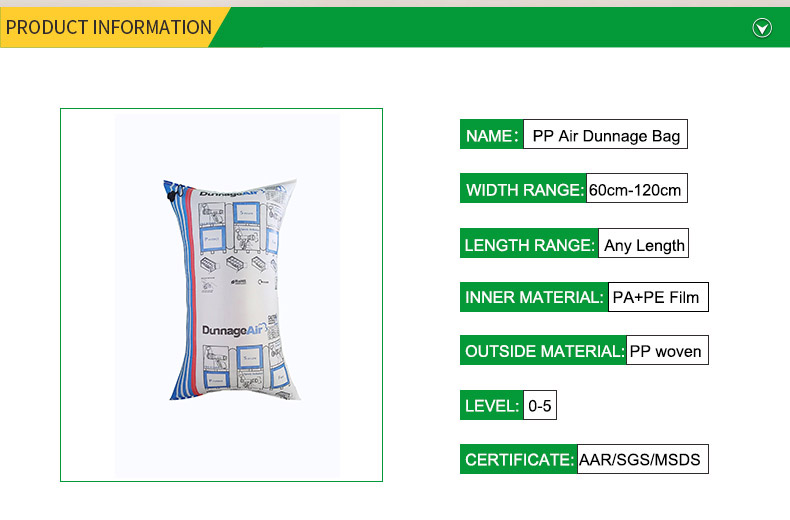

Construction

The basic construction of any dunnage air bag is the combination of two major parts:

the IN-LINER (extruded polyethylene) which holds the compressed air.
the OUT LINER (PP woven polypropylene material) which gives the shape, the stability and the enormous strength to the dunnage air bag. The strength depends on the material thickness (level).

Level

Level is the airbag classification in terms of quality (strength).

Association of American Railroads (AAR)

AAR approval confirms the high quality of the product. All BEGNI Group COBRA® dunnage airbags are AAR verified.

Fast filling valve (Venturi)

Fast filling valves, compared to the traditional valves, manage a huge amount of air: airbags are filled up much faster, no compressed air is not wasted. (Compared to the standard valves, dunnage airbags are filled fast- er than 30 – 40%). They also provide repetitive use of the airbag thanks to the ease of deflation.

Filling Pressure

According to the European standard, the safety factor is 3. (Nominal burst pressure / Filling pressure).

Average working pressure will not exceed 0,05 bar.
