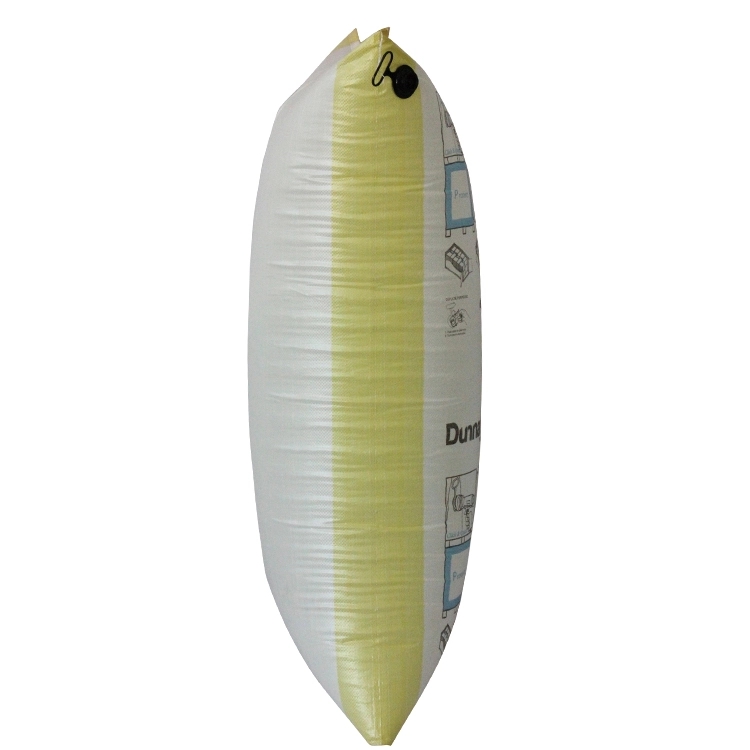

Dunnage airbags manage the movement of cargo by bracing loads, filling voids, protecting cargo from in-transit damage, and absorbing vibrations. Constructed with polywoven material as outer bags and co-extruded polyethylene as inner film, equipped with a reusable spring-loaded valve, they ensure remarkable durability. During transit, cargo faces risks such as shifting, sliding, and collisions with the sides of trucks or adjacent items. This damage is significantly reduced by strategically positioning dunnage airbags within gaps and voids between the cargo. They can be inflated with compressed air in seconds and are available in various sizes tailored to specific load requirements. Selecting the appropriate size is crucial to ensure optimal load balance and protection.
| Product Name | PP Woven Dunnage Bag |

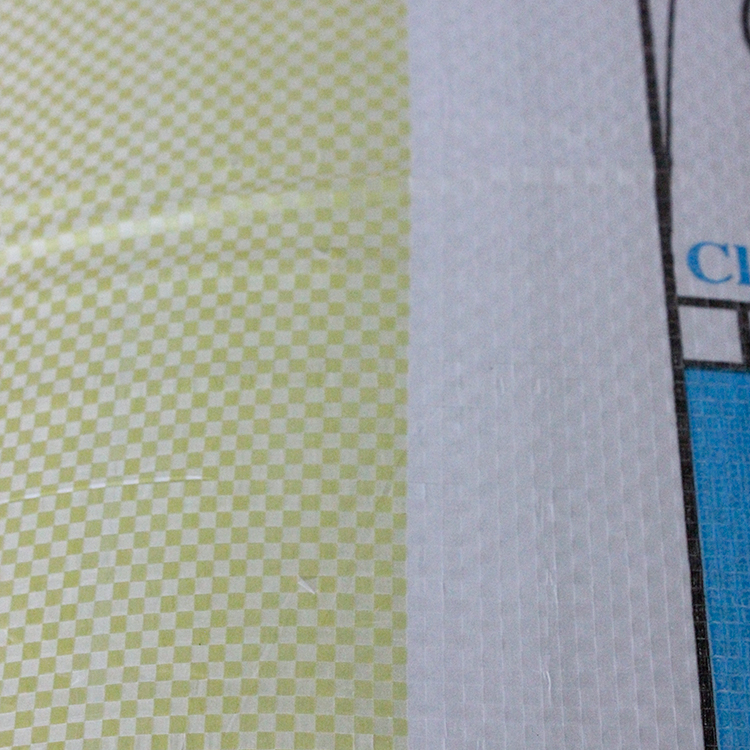

| Outside Materials | 100% PP Woven Fabric |

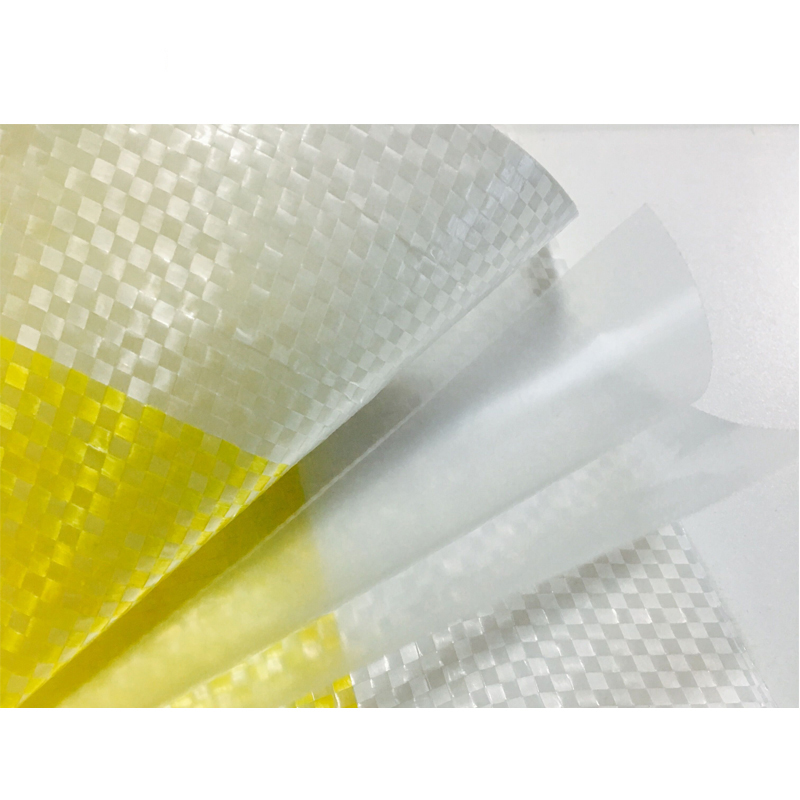

| Inner Materials | PA (Polyamide, Nylon);Enhance high barrier performance; |
| Work Pressure | 0.2-0.8 Bar / 3-10 PSI |
| Bursting Inspection | According AAR Standard |
| Dunnage Bag Width | 50-120cm |
| Dunnage Bag Length | 50-300cm |
| Dunnage Bag Valve Choice | Fast Inflate Valve or Traditional Valve |
Product Detail
| Standard SizeW*L(mm) | Width Of Gap (mm) | Use Of Height (mm) |
| 500*1000 | 125 | 900 |
| 600*1200 | 150 | 1100 |
| 800*1200 | 200 | 1100 |
| 900*1200 | 225 | 1300 |
| 900*1800 | 225 | 1700 |
| 900*2100 | 225 | 2000 |
| 1000*1800 | 250 | 1400 |
| 1000*2200 | 250 | 2100 |
| 1200*1800 | 300 | 1700 |
| 1200*2400 | 300 | 2300 |

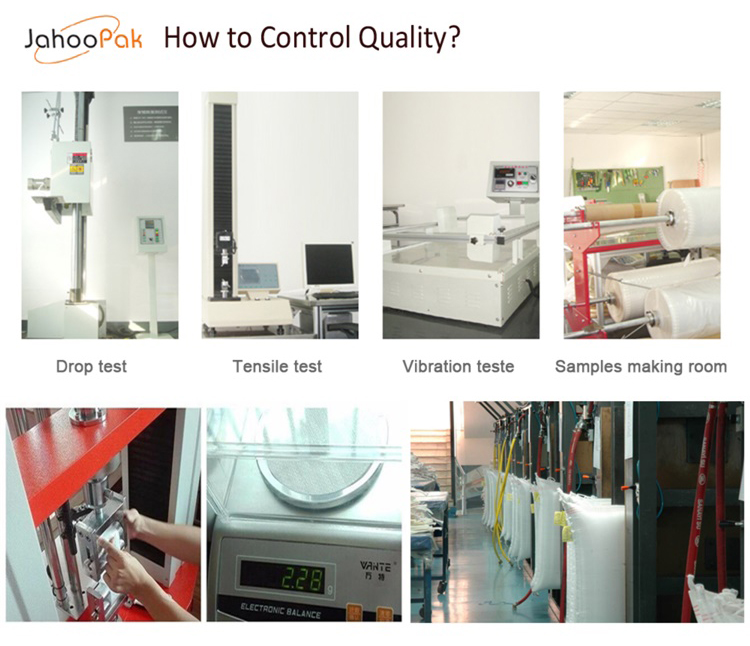

Quality Control

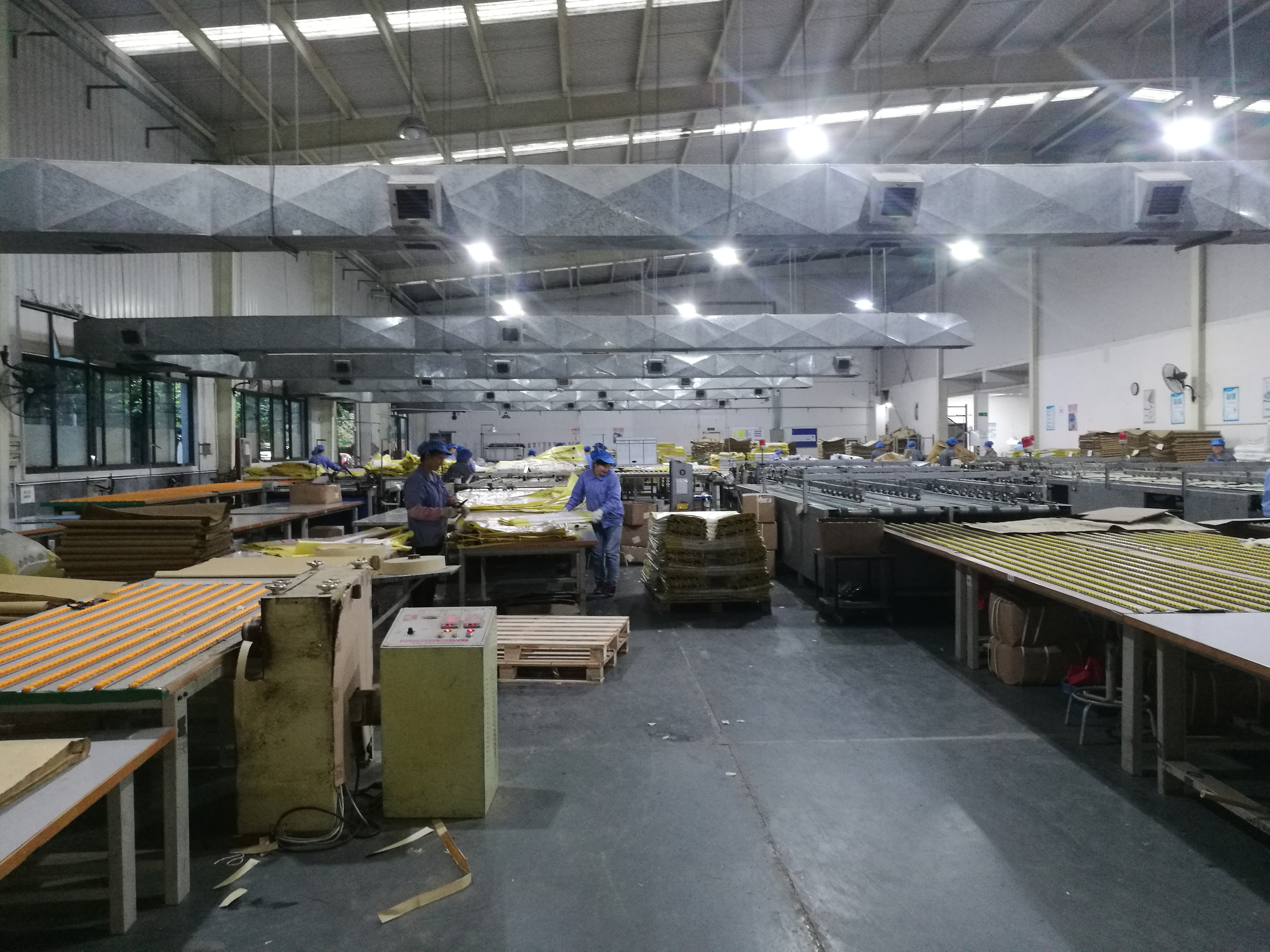

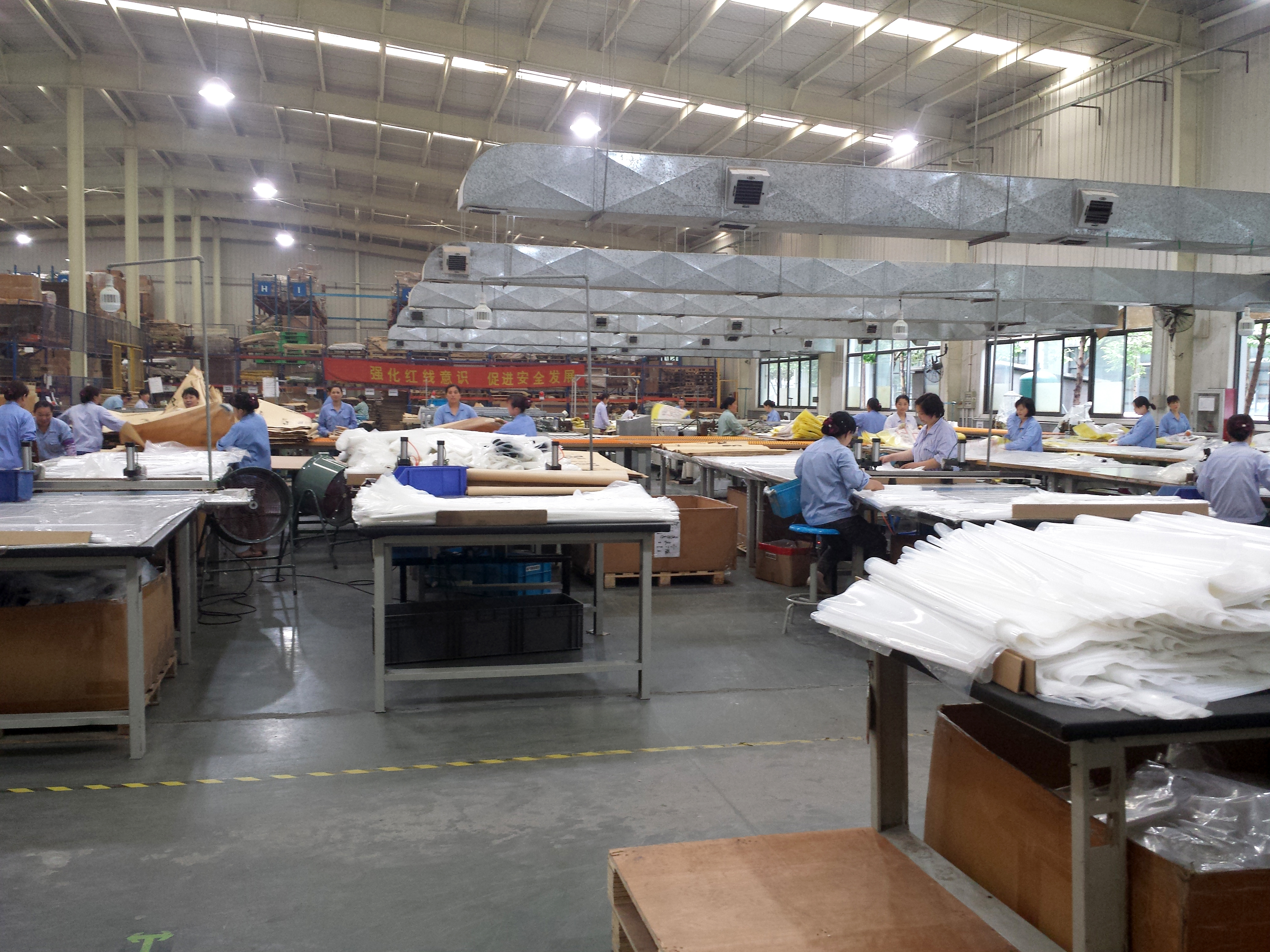

Production Line

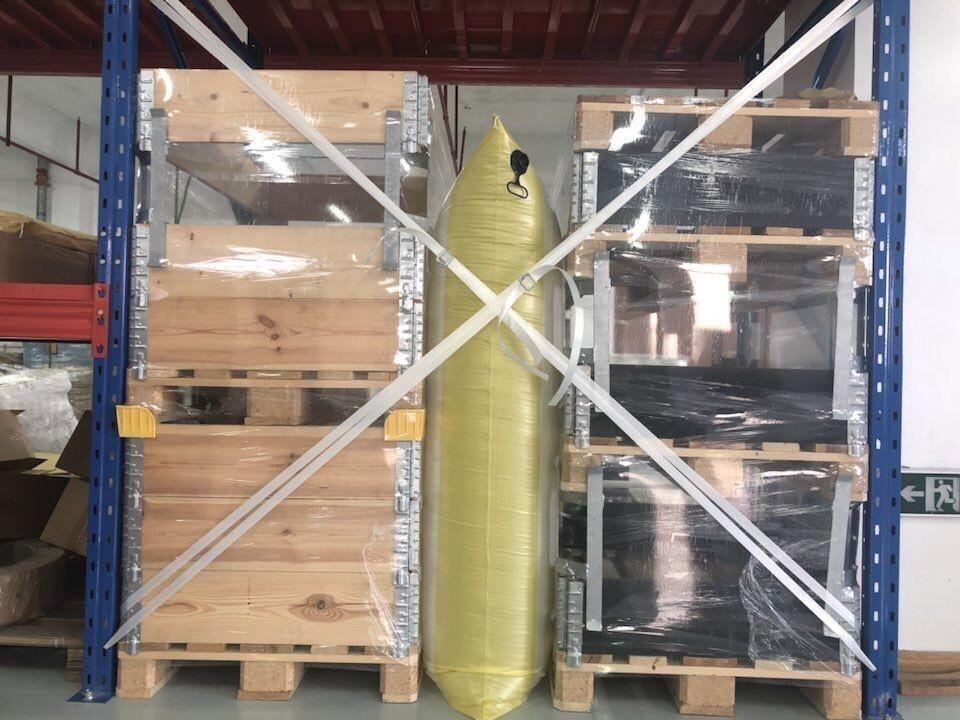

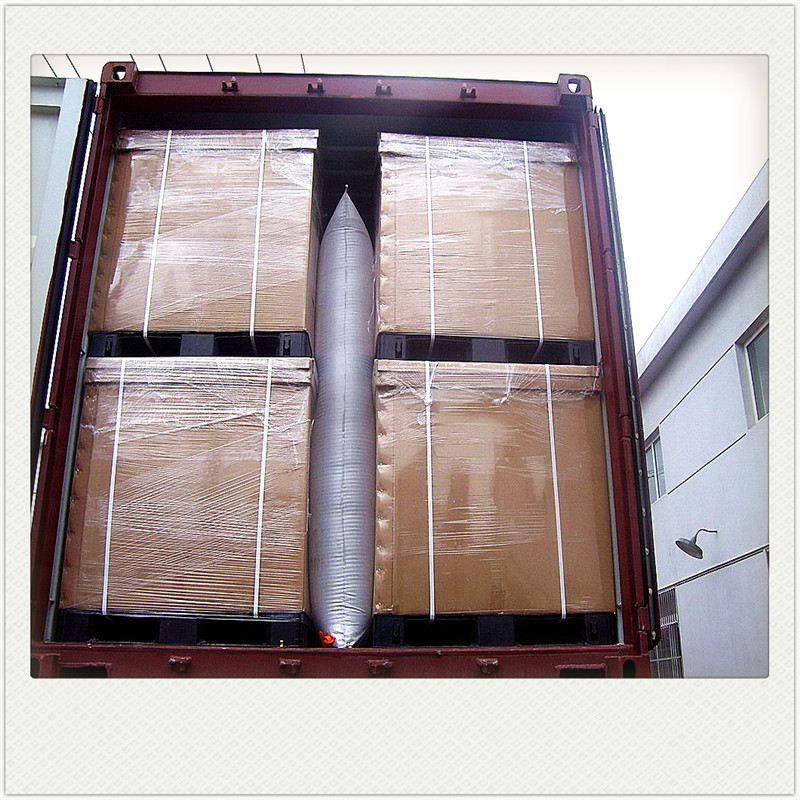

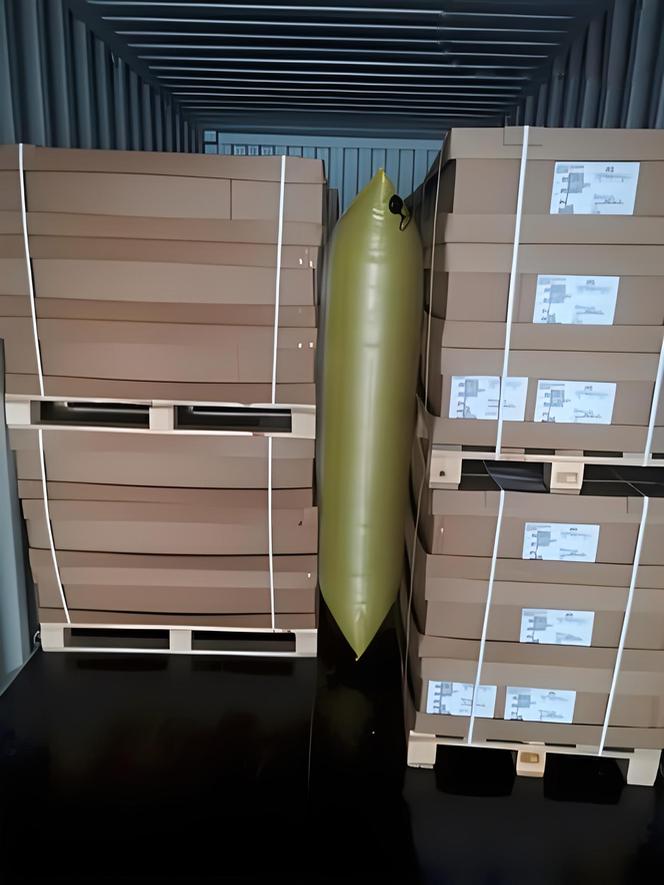

Application

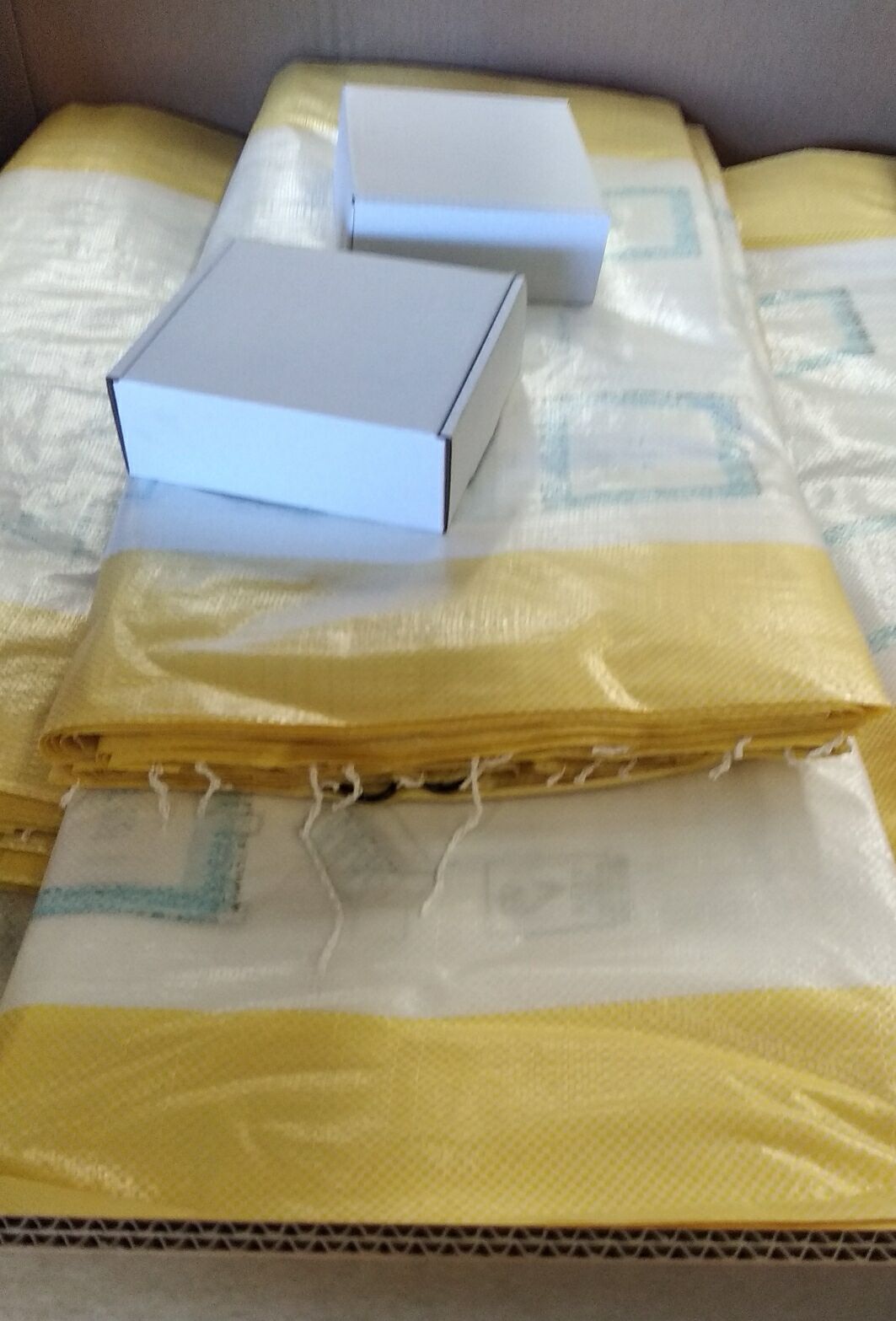

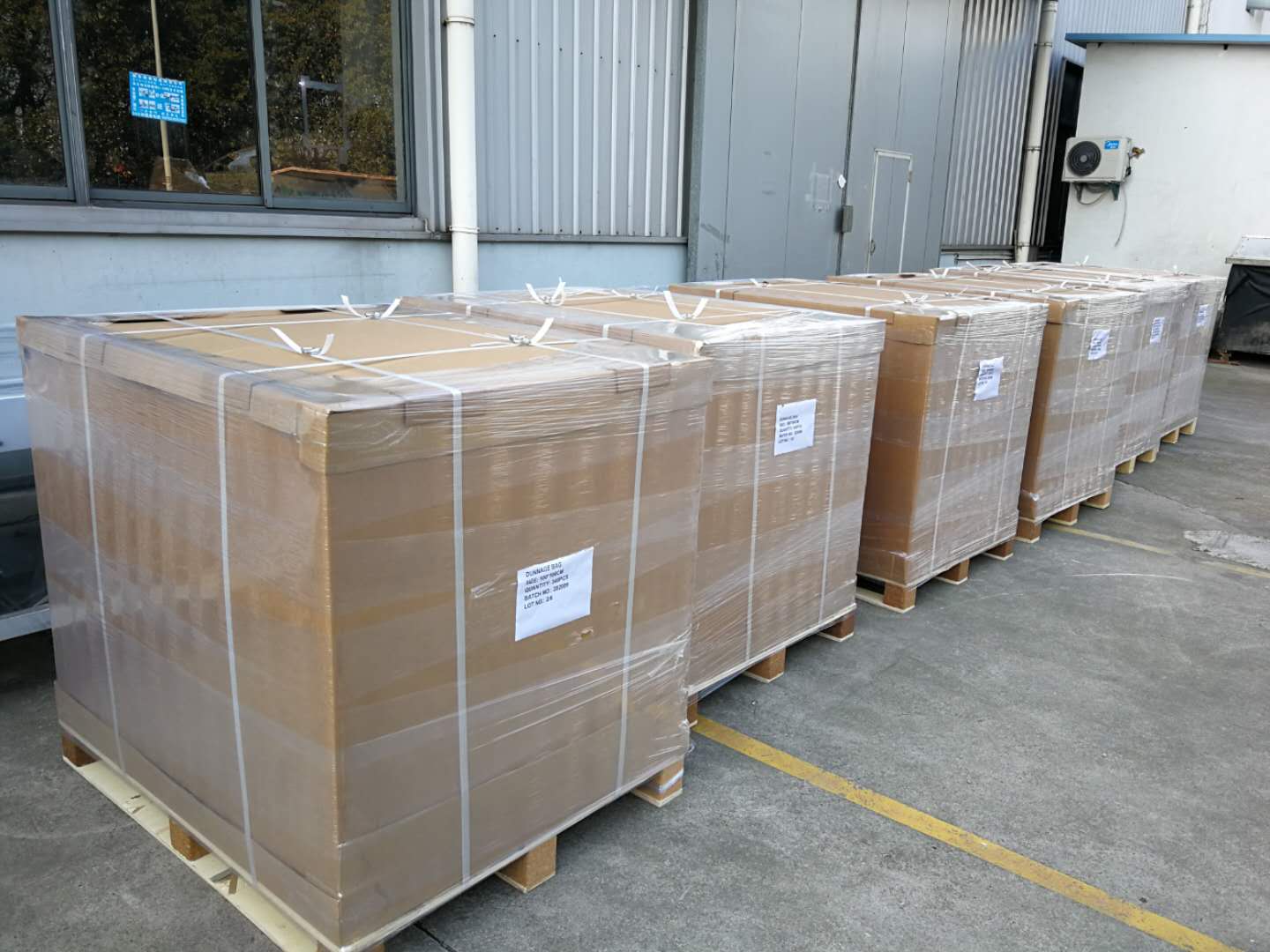

Packing
