The purpose of a cargo load bar is to protect cargo from moving and shifting during transit. No matter what the size of the load, all cargo can shift and fall out of place if the driver makes a quick stop or a sharp turn. Cargo load bars provide bracing for cargo to reduce the amount of movement in the traile.It is a bar placed horizontally between the sidewalls of a trailer or vertically between the floor and ceiling. Most cargo bars are made from steel tubing and feature rubber feet that adhere to the sides or floor and ceiling of a truck. They are ratchet devices you can adjust to fit the specific dimensions of the trailer. For added cargo security, cargo bars can be combined with cargo straps to protect products even further.The purpose of a cargo load bar is to protect cargo from moving and shifting during transit. No matter what the size of the load, all cargo can shift and fall out of place if the driver makes a quick stop or a sharp turn. Cargo load bars provide bracing for cargo to reduce the amount of movement in the trailer.
| Item No. | Length | Net Weight (kg) | Diameter (inch/mm) | Footpads | |
| inch | mm | ||||
| Steel Tube Cargo Bar Standard | |||||
| JPCBS101 | 46"-61" | 1168-1549 | 3.8 | 1.5"/38mm | 2"x4" |
| JPCBS102 | 60"-75" | 1524-1905 | 4.3 | ||
| JPCBS103 | 89"-104" | 2261-2642 | 5.1 | ||
| JPCBS104 | 92.5"-107" | 2350-2718 | 5.2 | ||
| JPCBS105 | 101"-116" | 2565-2946 | 5.6 | ||
| Heavy Duty Steel Tube Cargo Bar | |||||
| JPCBS203 | 89"-104" | 2261-2642 | 5.4 | 1.65"/42mm | 2"x4" |
| JPCBS204 | 92.5"-107" | 2350-2718 | 5.5 | ||
| Aluminum Cargo Bar | |||||
| JPCBA103 | 89"-104" | 2261-2642 | 3.9 | 1.5"/38mm | 2"x4" |
| JPCBA104 | 92.5"-107" | 2350-2718 | 4 | ||
| Heavy Duty Aluminum Tube Cargo Bar | |||||
| JPCBA203 | 89"-104" | 2261-2642 | 4 | 1.65"/42mm | 2"x4" |
| JPCBA204 | 92.5"-107" | 2350-2718 | 4.1 | ||

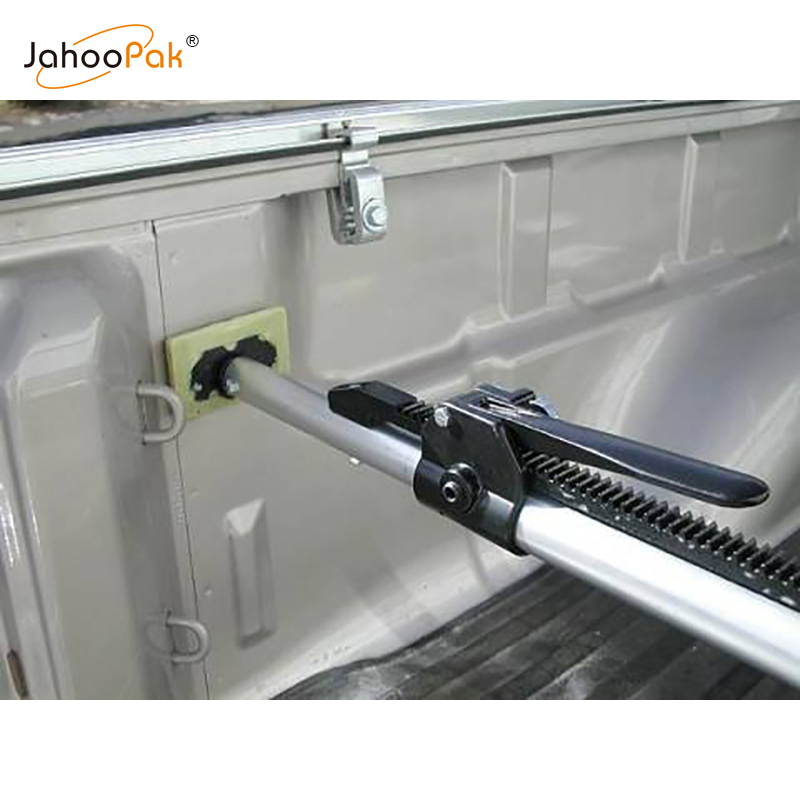

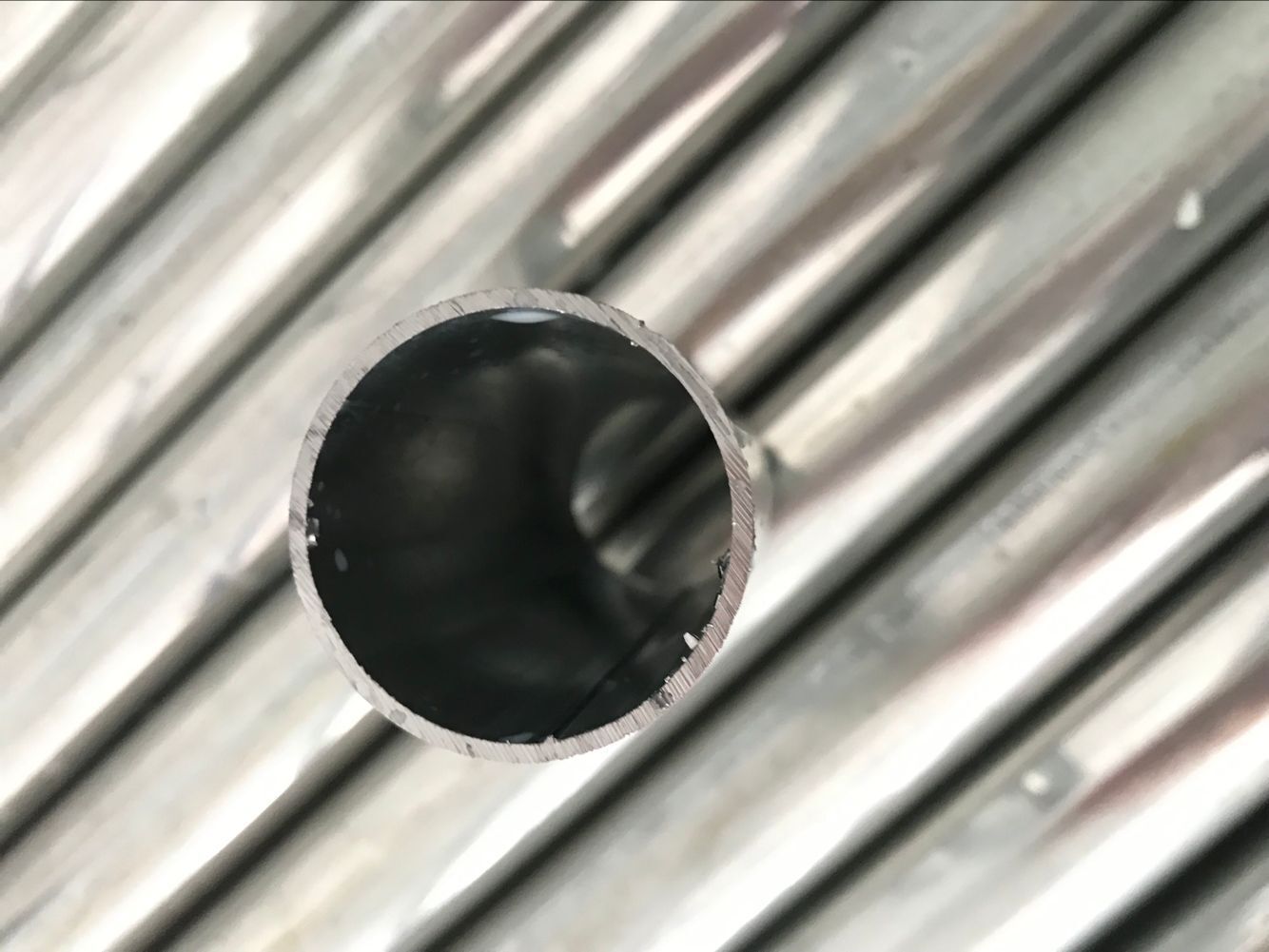

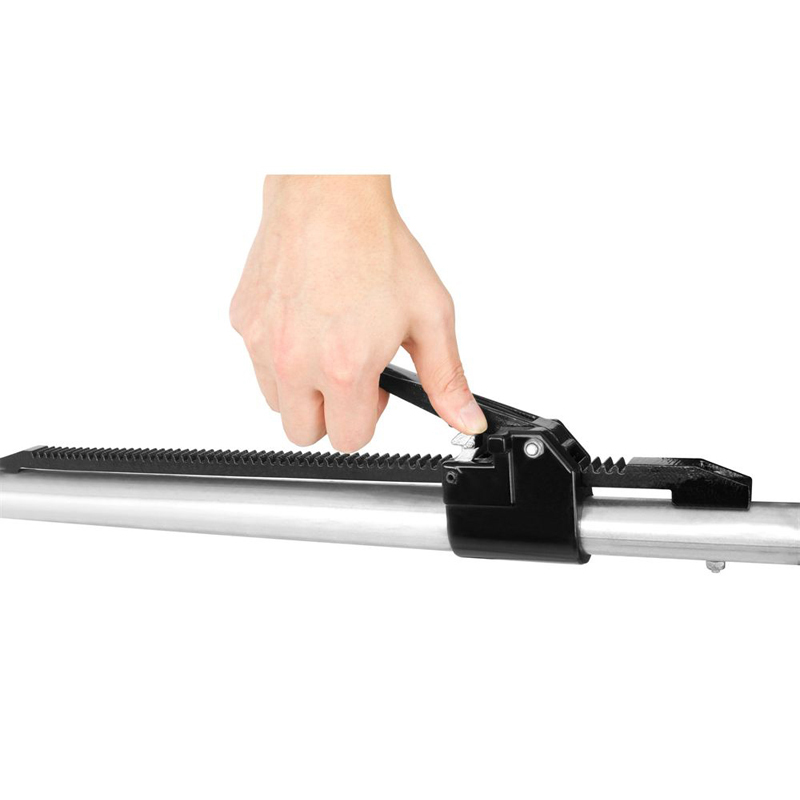

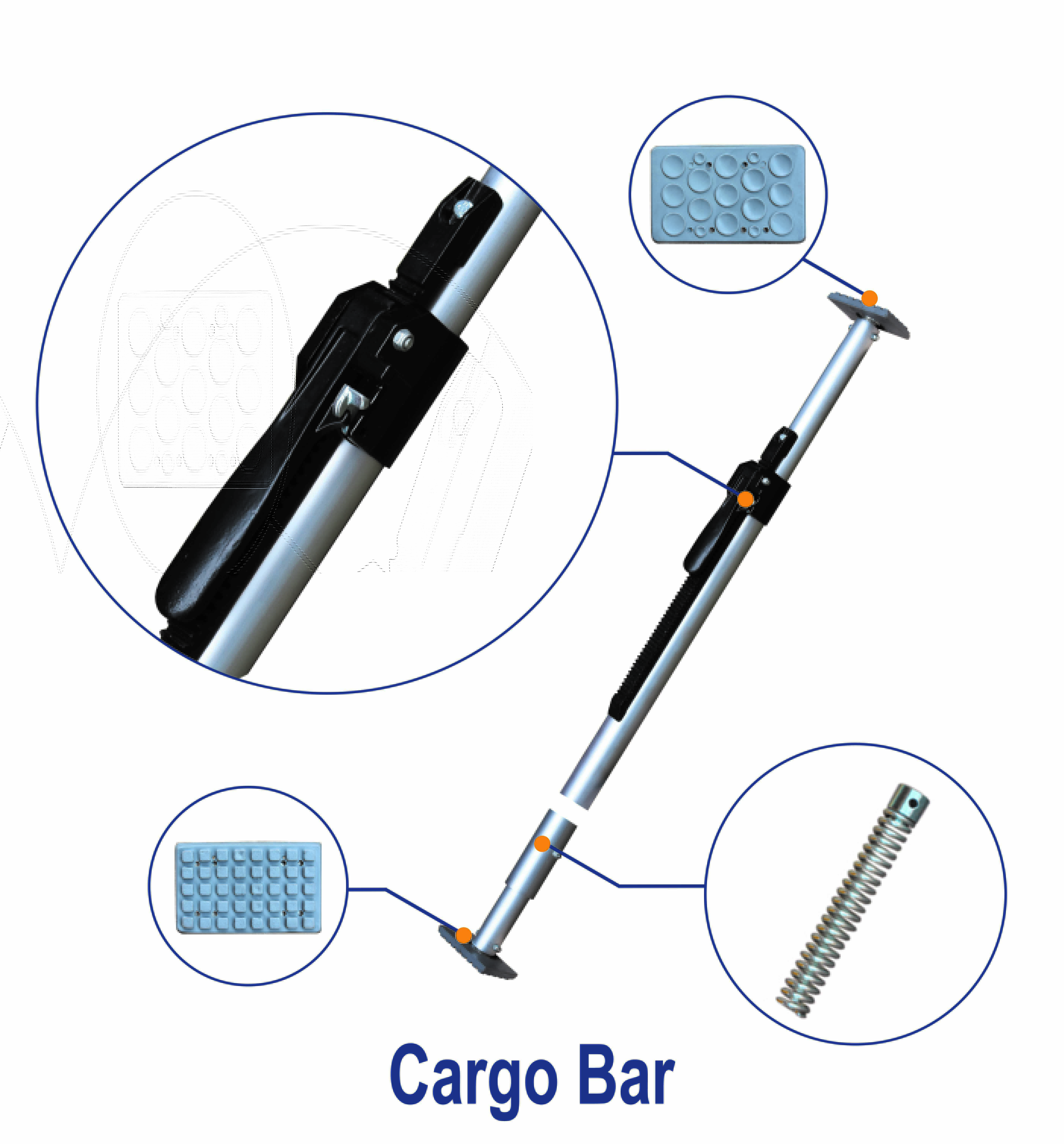

Product Details

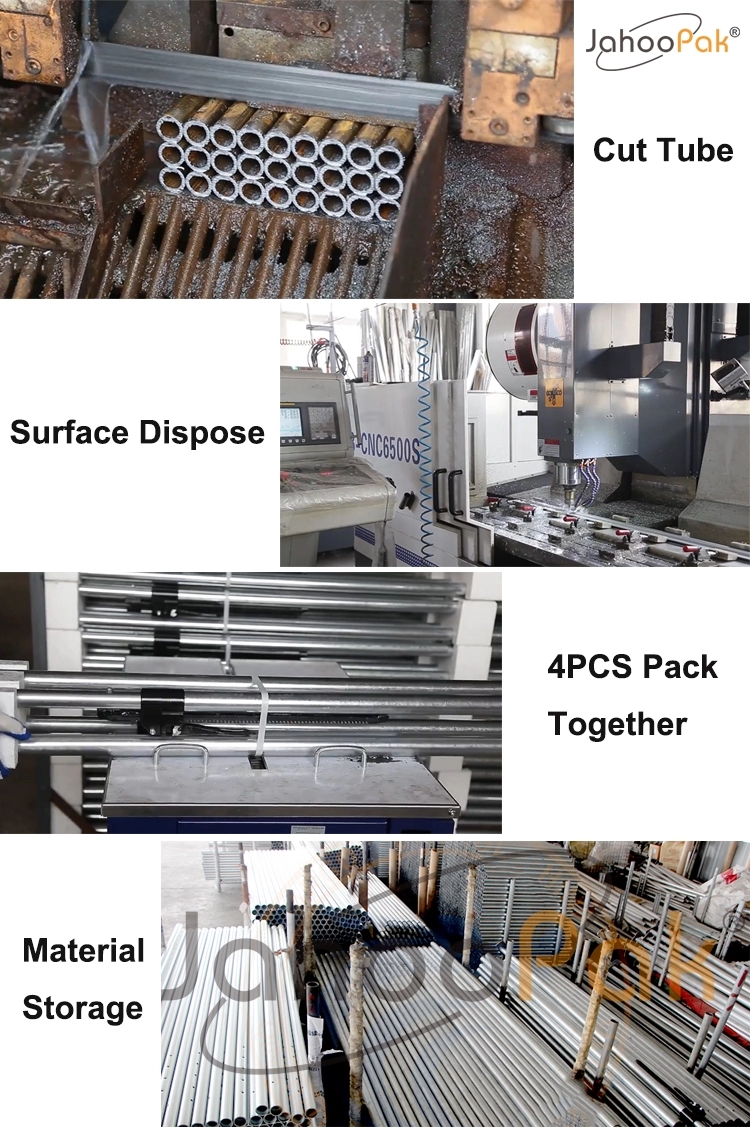

Product Process

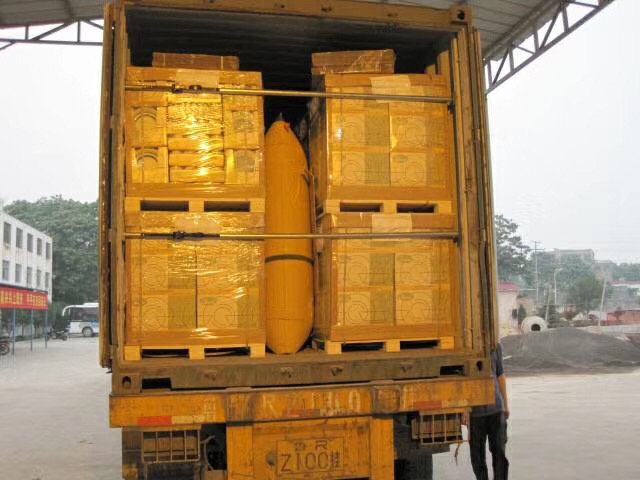

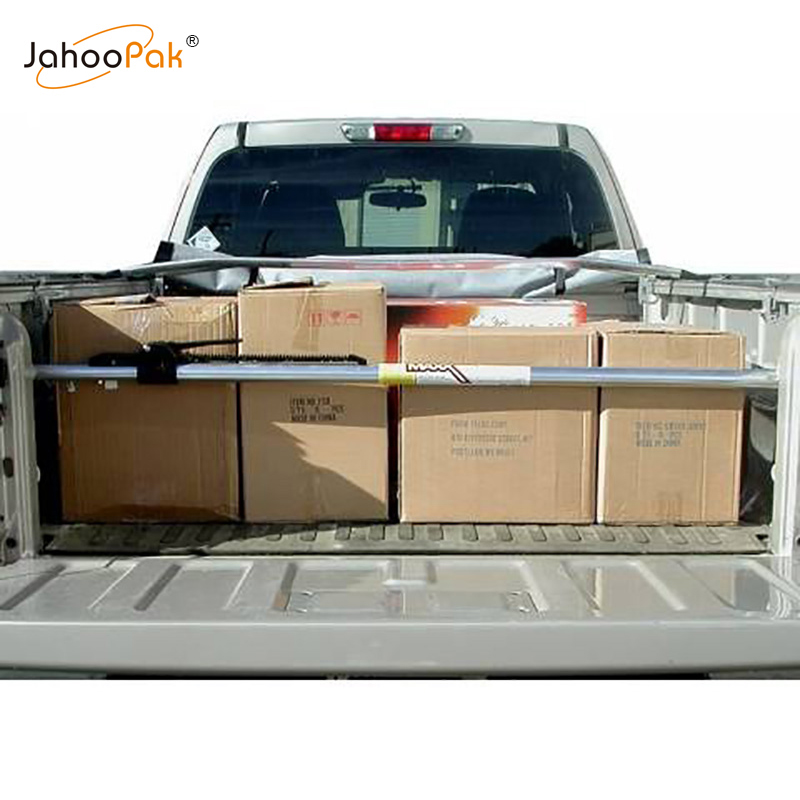

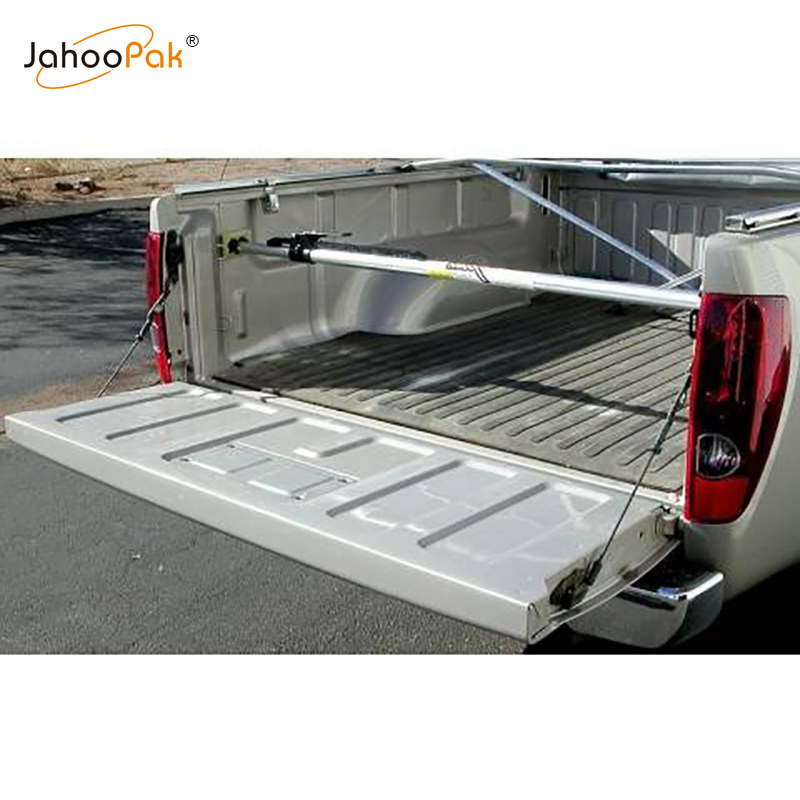

Application

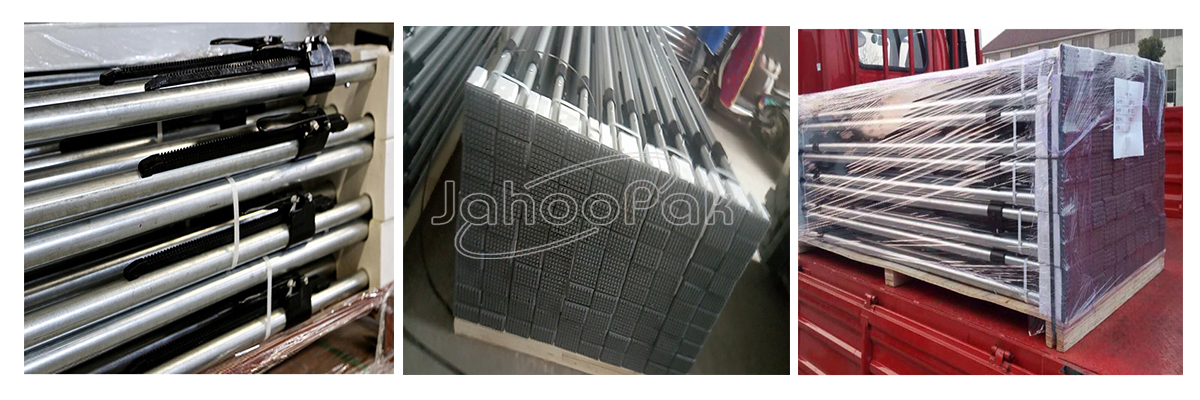

Packing
